Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150

Kaiping Zhonghe Machinery Manufacturing Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150

Brand Name : ZH

Model Number : ZH-JCB22

Certification : CE

Place of Origin : Guangdong, China

MOQ : 1set

Price : $14000/Pieces

Supply Ability : 60 Piece/Pieces per Month

Delivery Time : 15works

Packaging Details : Bubble bag packaging

Condition : 100% New

Applicable Industries : Machinery Repair Shops, Construction works

Showroom Location : Indonesia

Warranty : 1 Year

Application : for All Excavator

Material : Q355B or Q345B

MOQ : 1 Set

Apply to : Commonly used

Usage : Machinery Accessories

Port : Shenzhen Yantian Port

Contact Now

Supplier Excavator Long Arm 18m Long Reach for Mini Excavator CAT336 PC230 PC160 DX130 SK150


See what Zhonghe can do: Catalogue ZH excavator boom arm.pdf
For more products:

Product Presentation of Excavator Extension Arm

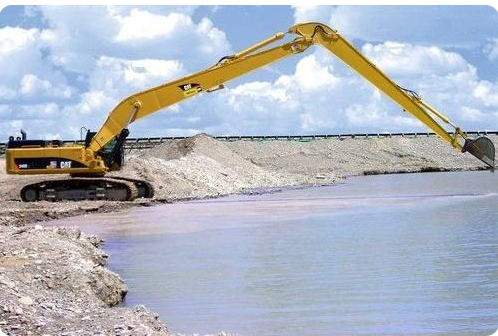

  The long arm of the excavator is made of Q355B steel with good strength and rigidity. The shaft sleeve of the lengthened arm is generally made of 45 # steel, with 40Cr bushing inside, together with the lubricating effect of butter, it reduces the shear force produced when the shaft and the sleeve rotate frequently, thus, the service life of the shaft sleeve is increased. In the construction of water conservancy and hydropower projects, it is also a major project that often uses excavator long arm, which can be excavated according to the required depth. In water conservancy and hydropower engineering, the long arm of excavator is called the king of dredging in engineering. It can be seen that its excavation capacity is very good and its dredging capacity is stronger. And in the use of hydraulic engineering can also be lengthened according to the specific depth of the modified arm length.

 Material Use  Q345B, Q550D, Also can customize to customer requirements
 Product Warranty Period  6 months,9 months,1 Year
 Product Size  Most lengths can be 34M, According to customer requirements, Any excavator model



Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150



Advantages of Zhonghe Long Boom Excavator

1. Less maintenance
Using high quality materials, such as Q355B as default, Q690D optional, Niningbo connectors, seamless precision pipelines, graphite alloy copper sleeve, and strong but light bucket cylinder.

2. Strong and sturdy
Built-in reinforcing ribs. Professional welding skills towards the different bearing positions. Groove preparation(45° edge-mining) before welding.

3. Tolerance within 5-10um
Hole drilling tolerance is within 5-10um, ensure accuracy.

4. Reach deeper and higher
The max work range and the max digging height are larger as the angle of the boom and arm can reach 163 degrees.

5. High work efficiency and saving fuel
Lighter while taking into account the quality, not only ensures work efficiency but also saves fuel.

6. Fillet weld testing
We can determine the quality of a fillet weld joint by performing NDT and mechanical testing. Macro examinations and fillet fracture tests give a good view of the profile, fusion and penetration, and reveal whether there are any imperfections, such as porosity or inclusions, in the weld. These tests are used to test the welder’s ability to weld a fillet weld.

Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150

What Zhonghe Can Do



CUSTOMIZATION:
1. Applicable for all brand excavators.
2. Color, length, and material can do according to you.
3. Extra pipelines can be added to suit some extra applications.
4. Boom cylinder and stick cylinder can also be supplied if the customer wants.

STRONG PRODUCTION CAPACITY:
We can produce 50 sets of excavator booms per month.
Our annual output of various types of excavator boom arms can reach 600 sets.

GOOD SERVICE:
1. Online support within 24 hours.
2. Appointment video technical support.
(Our engineers have focused on excavator boom and attachment for over 10 years)
3. Long excavator boom shall be two/three jointed pcs to make it fittable into a container to save shipping costs.

Warranty:
1 year for long reach boom, 180 days for cylinder and linkage, and 90 days for the bucket.

Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150



All parts you needed are included.

Long Reach Kits Are Fully Compatible with ZHONGHE Excavator Standard Buckets, and Cylinder.
Excavator long boom
Excavator long arm
Standard bucket
Linkage kit
Bucket cylinder
Butter hose
Pin
Lubricating system
Seals



Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150



Specification of Excavator Boom and Stick

Weight
Model
Part Length
Total length(m)
Weight(kg)
Maximum removal height(m)
Total Length(mm) 25T 8.5 16 2800 16M
Boom(A)(mm) 2.3 900
Arm(b)(mm) 5.2 1700
Maximum Digger Radius(C)(mm) 30T 9.5 18 3000 18M
Maximum Digger Depth(C)(mm) 2.3 1000
Maximum Unloading Height(E)(mm) 5.2 1950
Maximum Digger Height(F)(mm) 35T 10.5 20 3500 20M
Bucket Volume(m³) 2.3 1100





Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150

Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150



Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150

Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150

Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150

Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150

Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150

Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150

Company Strength

          Kaiping Zhonghe Machinery Manufacturing Co., Ltd, is a manufacturing and trading combo that specializes in customizing different kinds of excavator boom arms and attachments We have more than 14000m' steel structure standardization workshop with a large number of high precision processing equipment as well as a strong and cohesive team. At present, there are more than 60 experienced technical staff, 30 welding workers with over 7 years of experience, 15 senior designers, and a high-tech R&D team.
          Our annual output of various types of excavator boom arms can reach 600sets. We supply products with high quality and moderate prices, which sell well in more than 40 countries and areas.
We adhere to" Merit Quality, Sincerity Management, and Customer Satisfaction", and honestly greet customers from home and abroad to negotiate and cooperate with us.
Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150
Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150
Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150
Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150
Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150
Long Reach Mini Excavator Long Arm 18m For CAT336 PC230 PC160 DX130 SK150

FAQ of excavator long arm

Q1: Why not have boom and stick cylinders in the plan?
A1: First, the whole long arm is lengthening, but the boom just lengthening from its middle sleeve to its end, so the original boom and stick cylinder can be used. Second, using the original parts can save you cost.

Q2: How long is the boom arm can min excavator be configured with? Whether it is necessary to increase the counterweight?
A2. Generally speaking, the 30-40 excavator longest arm suggests to be 8 meters, and can configure 0.1 cbm bucket, with no need for an extra counterweight. 55 excavator's longest arm suggests to be 12 meters, which can configure 0.1-0.15 cbm bucket, which needs 0.5 ton extra counterweight. 60-80 excavator longest arm suggests to be 12 meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra counterweight.
It is not recommended to extend boom arm to longes the t length as mini excavator is easy to slosh.

Q3: How long will it take tall an excavator long reach boom?
It depends on the installer and machine size.
Usually disconnecting the original boom arm, stick cylinder, then pin the new one is okay.
Kindly remind, use
 to prepare several containers to fill the oil before disassembling.
